Model Description:

  Application:

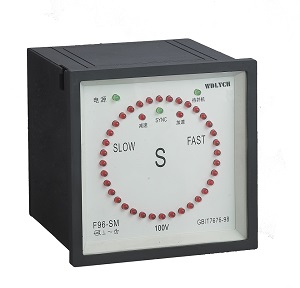

  SZT automatic synchroscope meter is the instrument which integrate synchronized indicating, frequency difference auto adjustment and parallel commands.

  Technical Parameters:

  1. Power supply: AC400V or AC100V 50/60Hz;

   2. Frequency absolute value less than 3Hz, speed adjustment parts can work;

   3.  Pulse width: 0.1-0.5s, 0-9 levels adjustment, "0" is testing position;

   4. Frequency difference locking range: 0.1-0.5s, default: 0.3Hz;

   5. Lead time of closing demands: 80ms-440ms, default: 200ms;

   6. Power consumption: <5VA;

   7. Contact output load capacity: AC380V/3A; DC28V/10A(Resistance load);

   8. Environment: Temperature: 0-50℃, humidity: 95%.
